FOTRIC TK7 Warmtebeeldcamera
€1.499,00
FOTRIC TK7 Warmtebeeldcamera
FotricFOTRIC TK7 Thermische beeldcamera, 384 x 288 IR-resolutie, 49°*37° kijkveld, vrije focus thermische imager met 8MP zichtbare camera voor gebouw- en elektrische inspecties, -4°F tot 1022°F, 3,5" touchscreen
- Normale prijs
- €1.499,00
- Aanbiedingsprijs
- €1.499,00
- Normale prijs
-
Tax included.
Shipping calculated at checkout.
-
Duidelijke warmtebeeldopname met echte 384 × 288 resolutie
Uitgerust met een echte 384 × 288 infrarooddetector en een breed kijkveld van 49° × 37°, levert de TK7 duidelijke warmtebeelden voor snel scannen en algemene inspectietaken. Het focusvrije ontwerp stelt gebruikers in staat om direct warmtebeelden te vastleggen zonder handmatige aanpassing. -
Ideaal voor dagelijkse inspectietoepassingen

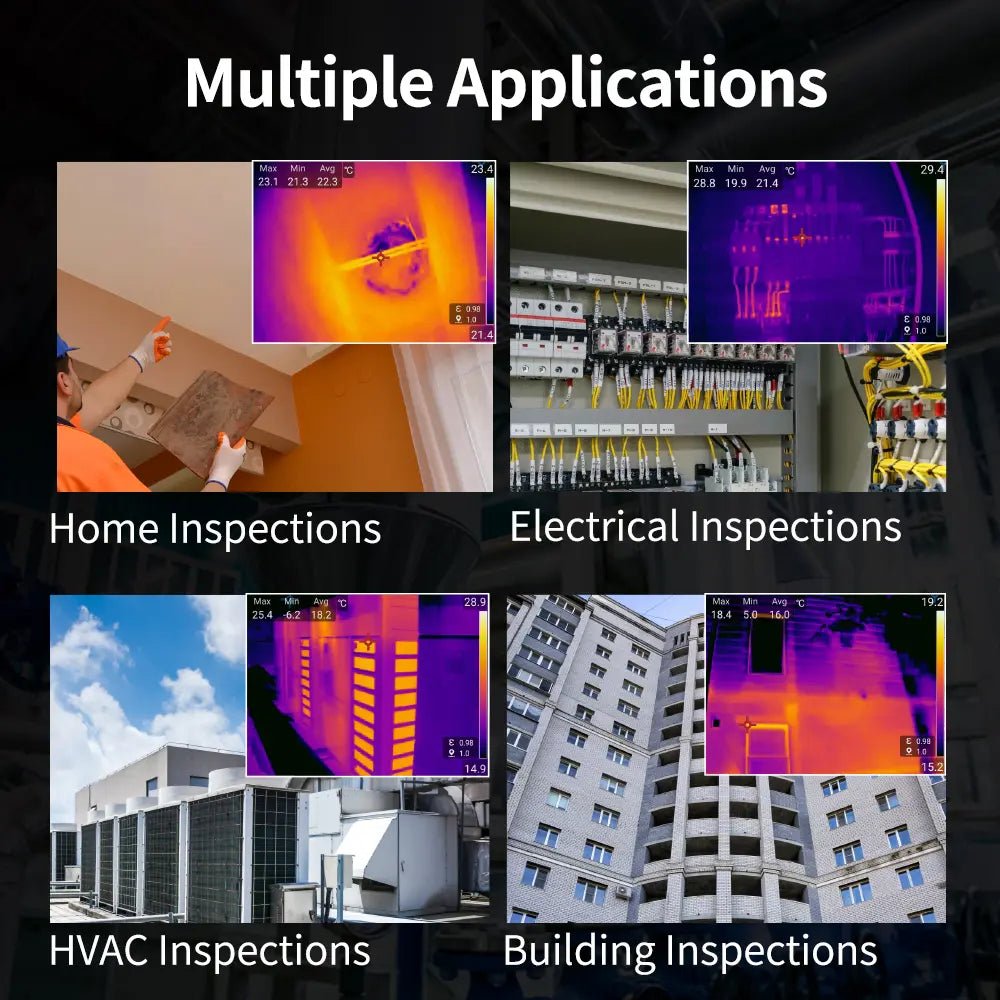

Ontworpen voor regelmatige elektrische, mechanische, HVAC- en gebouwinspecties, helpt de TK7 om snel oververhitte onderdelen, isolatieproblemen en abnormale temperatuurpatronen te herkennen—en maakt efficiënte, contactloze foutdetectie mogelijk. -
Breed temperatuurmeetbereik
Bestrijkt een breed temperatuurbereik van −4 °F tot 1022 °F (−20 °C tot 550 °C), waardoor het geschikt is voor verschillende industriële en onderhoudsscenario's, van lage temperatuuromgevingen tot controles van hoogwarmteapparatuur. -
Warmte- en zichtbeeldfusie
Beschikt over een 8-megapixel zichtbare camera die samenwerkt met de warmtebeeldopname, en biedt duidelijke zichtbare referenties om de inspectienauwkeurigheid en de duidelijkheid van rapportages te verbeteren. -
Touchscreenbediening in compact ontwerp
Het 3,5" touchscreen biedt intuïtieve bediening en duidelijke visualisatie van warmtedata, terwijl het lichte, handdraagbare formaat de TK7 gemakkelijk te dragen en te gebruiken maakt voor dagelijkse inspecties.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.

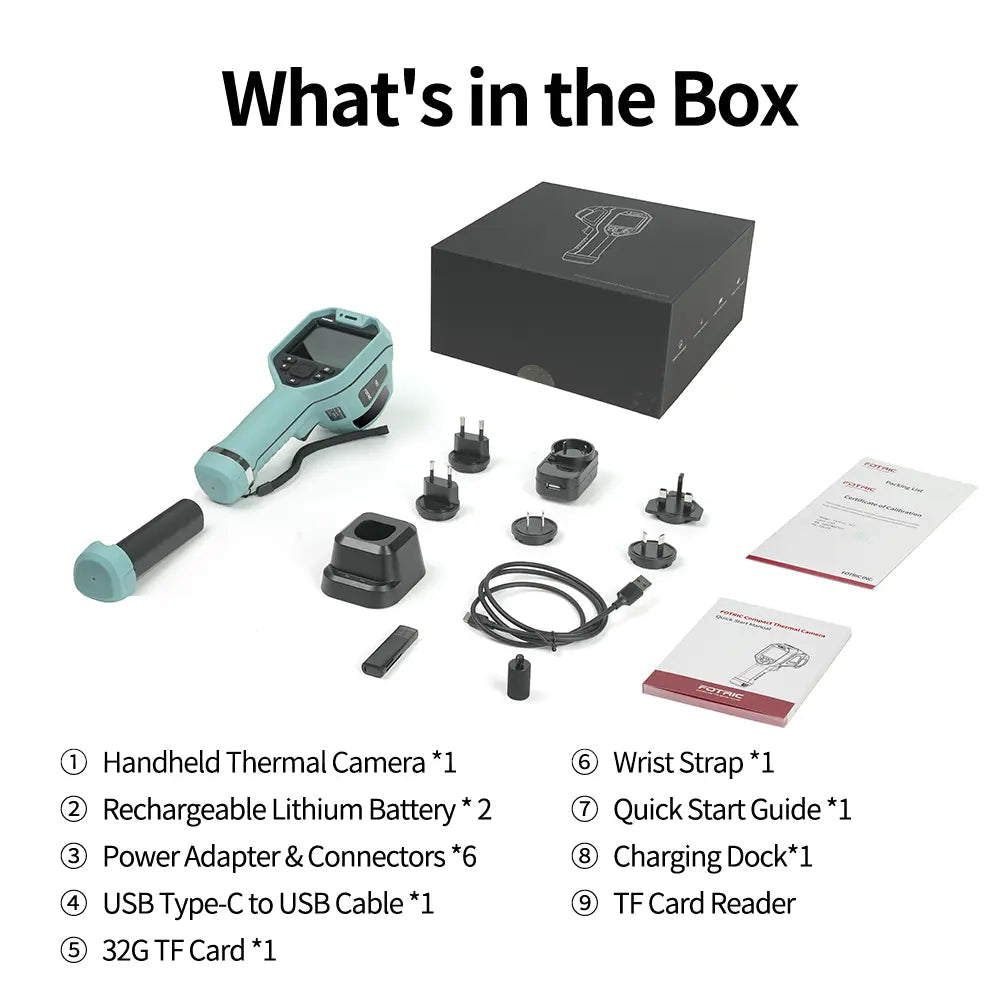

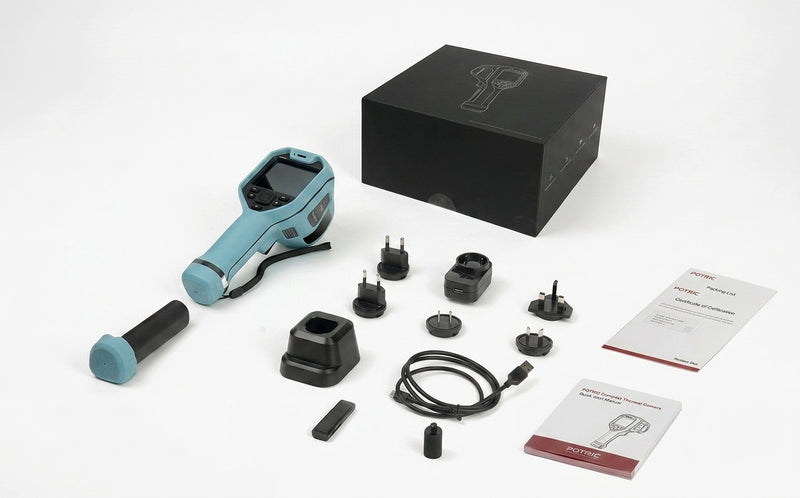

Everything You Need, Right Out of the Box
What's Included
- TK7 Handheld Thermal Camera
- Rechargeable Lithium Battery (2x)
- Power Adapter & Connectors (6 types)
- Charging Dock
- USB Type-C to USB Cable
- 32 GB TF Card
- TF Card Reader
- Wrist Strap
- Quick Start Guide

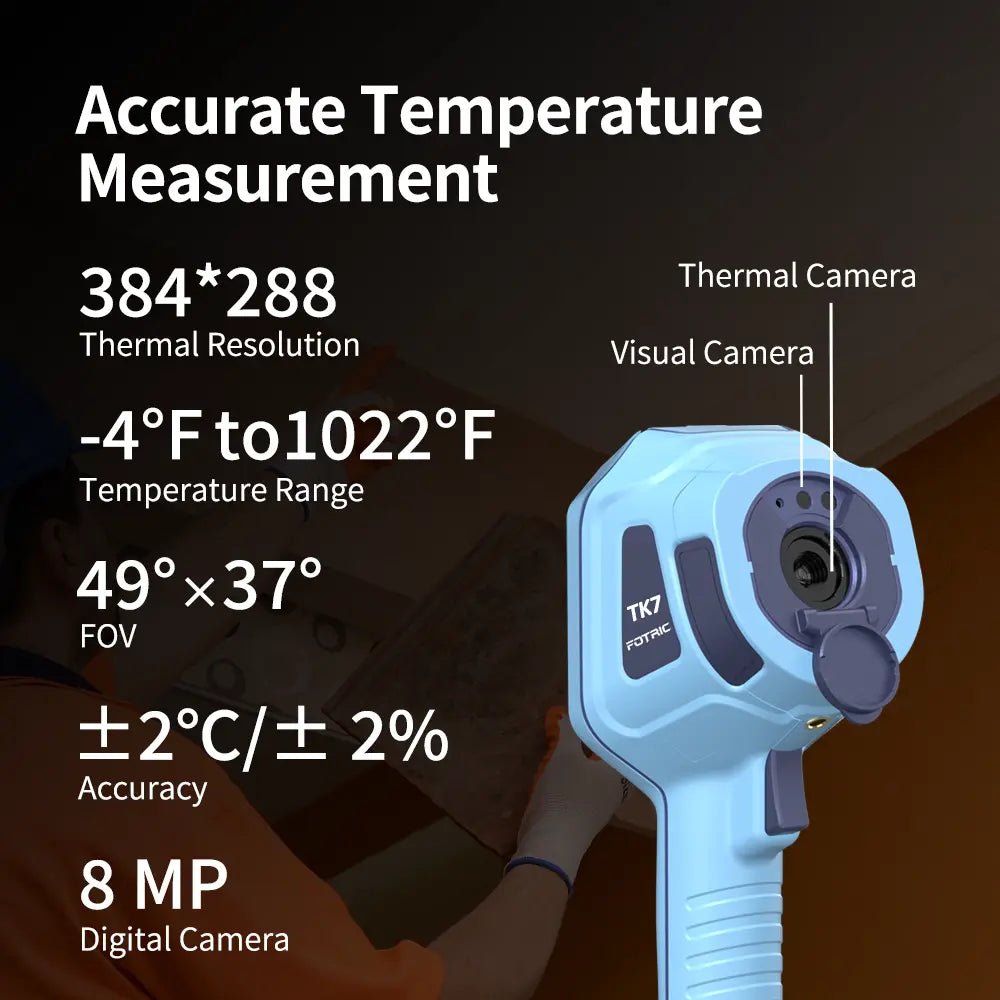

Technical Specifications

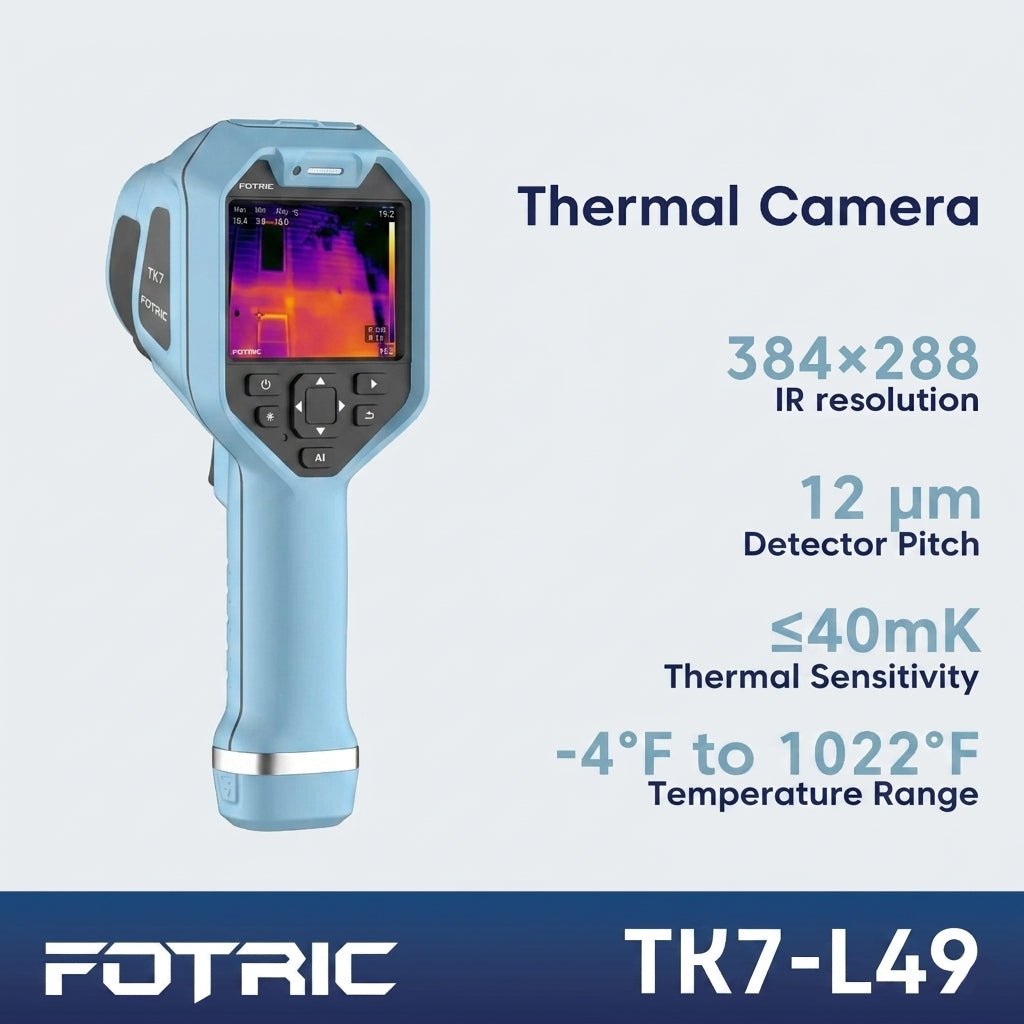

IR Resolution
384 × 288
Thermal Sensitivity (NETD)
40 mK @ 30°C
Field of View (FOV)
49° × 37°
Focus Mode
Focus free
Image Frame Rate
40 Hz
Digital Camera
8 MP

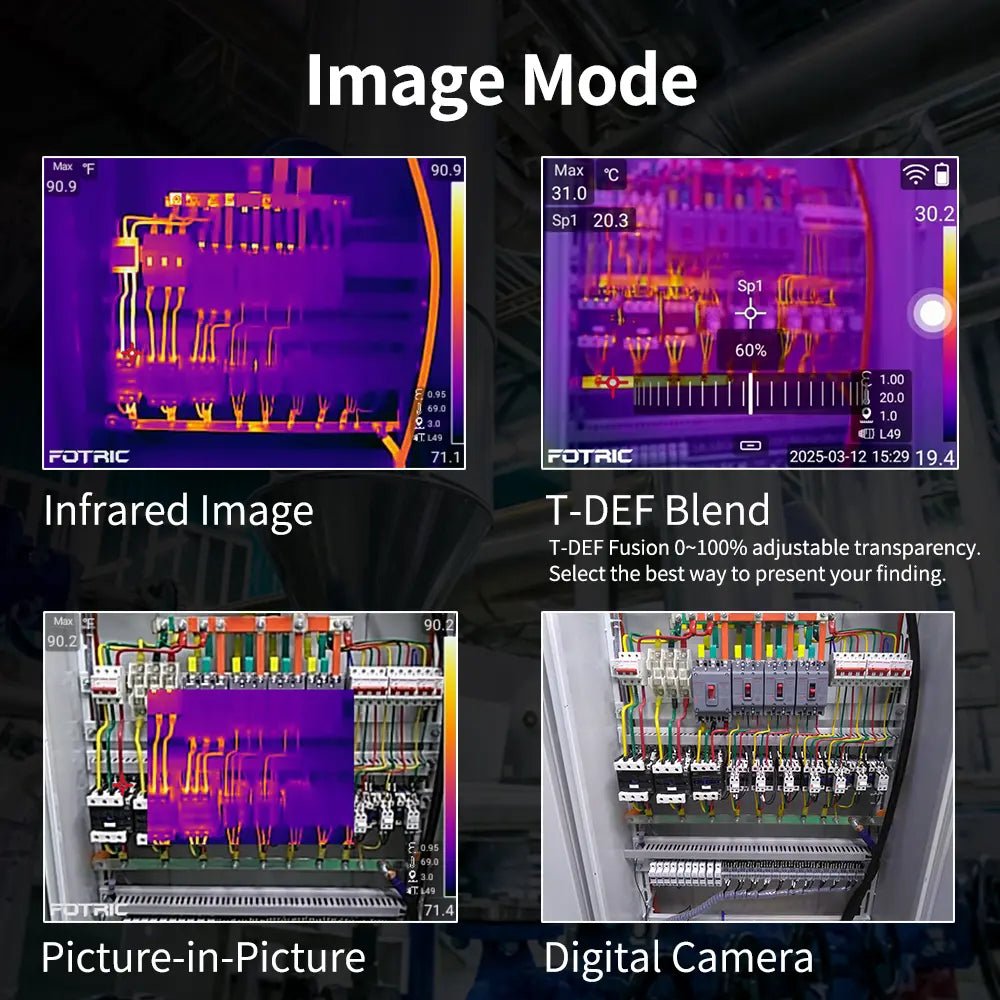

Image Modes
Thermal, Visible, PIP, T-DEF® Fusion
Temperature Rang
-20°C – 550°C
Accuracy
±2°C or ±2%
Display
3.5" touchscreen
Battery
5000 mAh Li-ion, ≥ 4 hours
Storage
32 GB TF card, expandable to 128 GB
Remote Display
WiFi to smartphone / tablet
Weight
800 g
Protection
IP54, 2 m drop
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat makes the 384×288 detector different from entry-level cameras?
110,592 genuine measurement pixels — about 40% more than 320×240 — each a direct sensor reading. Combined with a 17 μm ceramic-packaged detector and 40 mK thermal sensitivity, the TK6 captures finer thermal detail with lower noise, especially in low-contrast scenes where budget sensors struggle.
How does focus-free at 384×288 compare to manual focus?

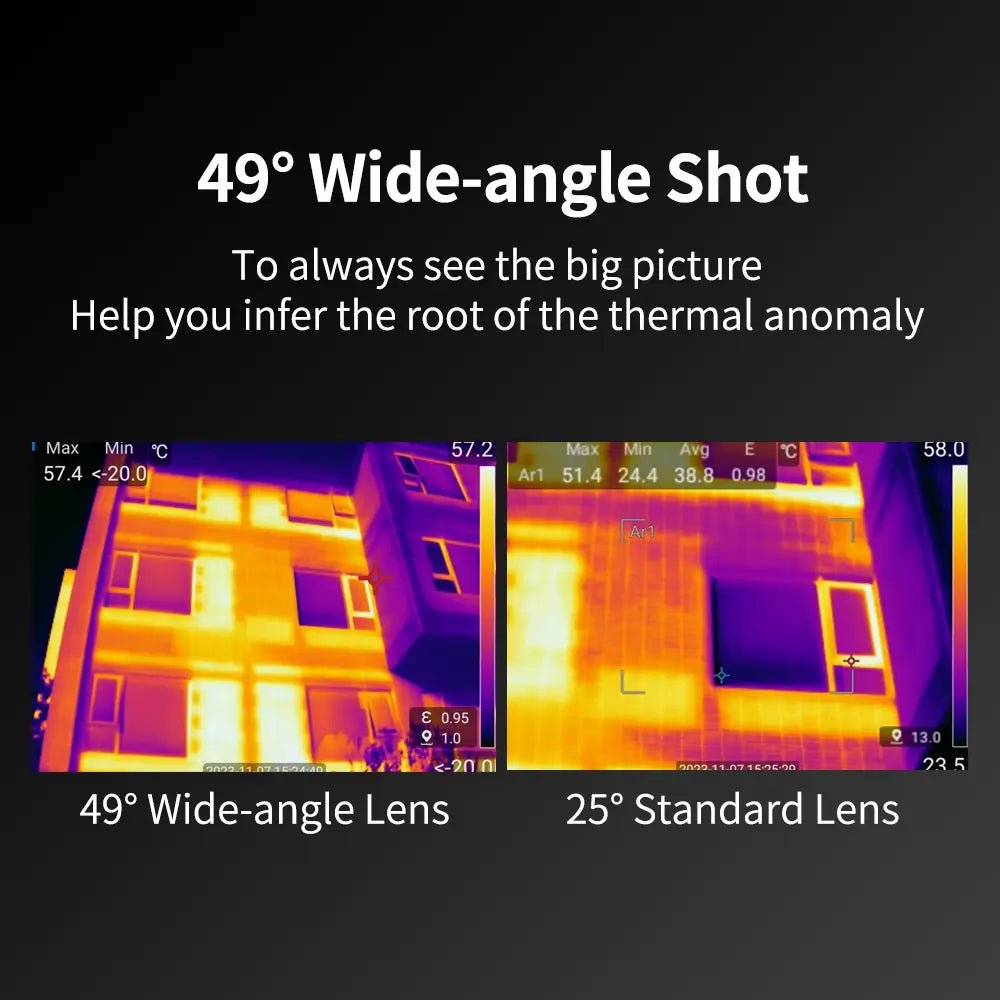

The TK7 pairs professional-grade 384×288 resolution with a focus-free 49°×37° wide-angle lens. You sweep large areas without touching a focus ring, and the resolution is high enough to catch anomalies that lower-res cameras miss. If your day is about coverage and speed moving between panels, ducts, and building envelopes — the TK7 workflow is faster without sacrificing image quality. For extreme close-up PCB work, the TK6's manual focus is the better fit.
What connectivity and remote control options does it have?
- Dual-band WiFi — stream live thermal images to a phone, tablet, or PC
- GPS geotagging — automatically tag each image with location data for route documentation
- EasyIR mobile app — remote control and image transfer from your phone
- IRExplorer web interface — control the camera from any browser, no software install needed

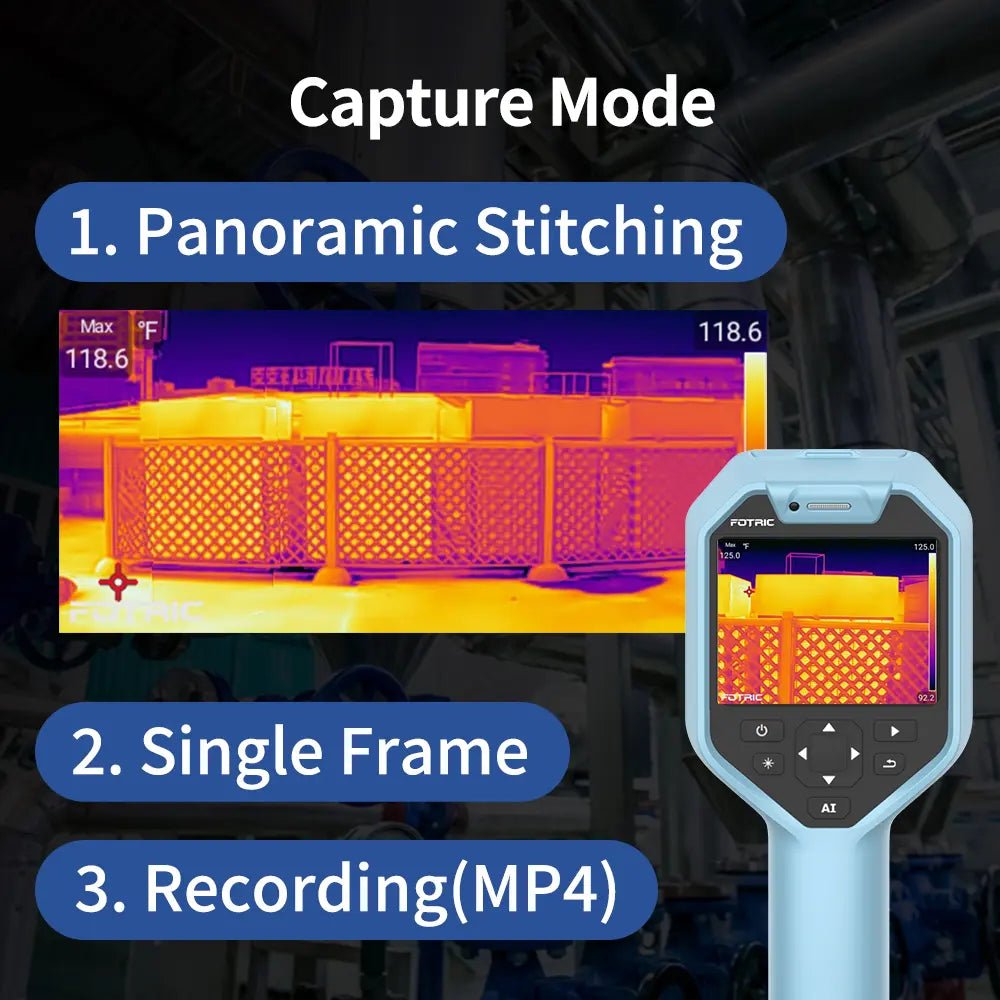

- Panoramic Stitching — scan large areas and stitch multiple frames into one wide thermal image
Can it record video, not just still images?
Yes — and this is a major differentiator. In addition to standard MP4, the TK7 records Radiometric Video in IRS/IRSX format, where every pixel in every frame stores full temperature data. Review any moment of the recording in AnalyzIR® Professional software — re-measure, adjust emissivity, or export frame-by-frame. This is essential for transient fault analysis: a breaker that trips for half a second, a bearing that spikes under load.
What battery setup does it come with?
The standard TK7 package includes TWO 5000 mAh field-replaceable lithium batteries — each providing 4+ hours of continuous operation. With both charged, you have a full workday covered without reaching for a power bank. Hot-swap in seconds on-site.
What advanced imaging technologies are built in?
Powered by an Android-based platform, the TK7 includes FOTRIC's full imaging stack:
- T-TWB® — adaptive color mapping for scenes with large temperature differences
- IREdge — contour sharpening for clearer object definition
- T-DEF® Blend — thermal and 8 MP visual fusion, 0%–100% adjustable
- Super Resolution — software enhancement for even finer detail beyond native 384×288
