FOTRIC TD2 Geek Draagbare Akoestische Beeldvorming
€699,00

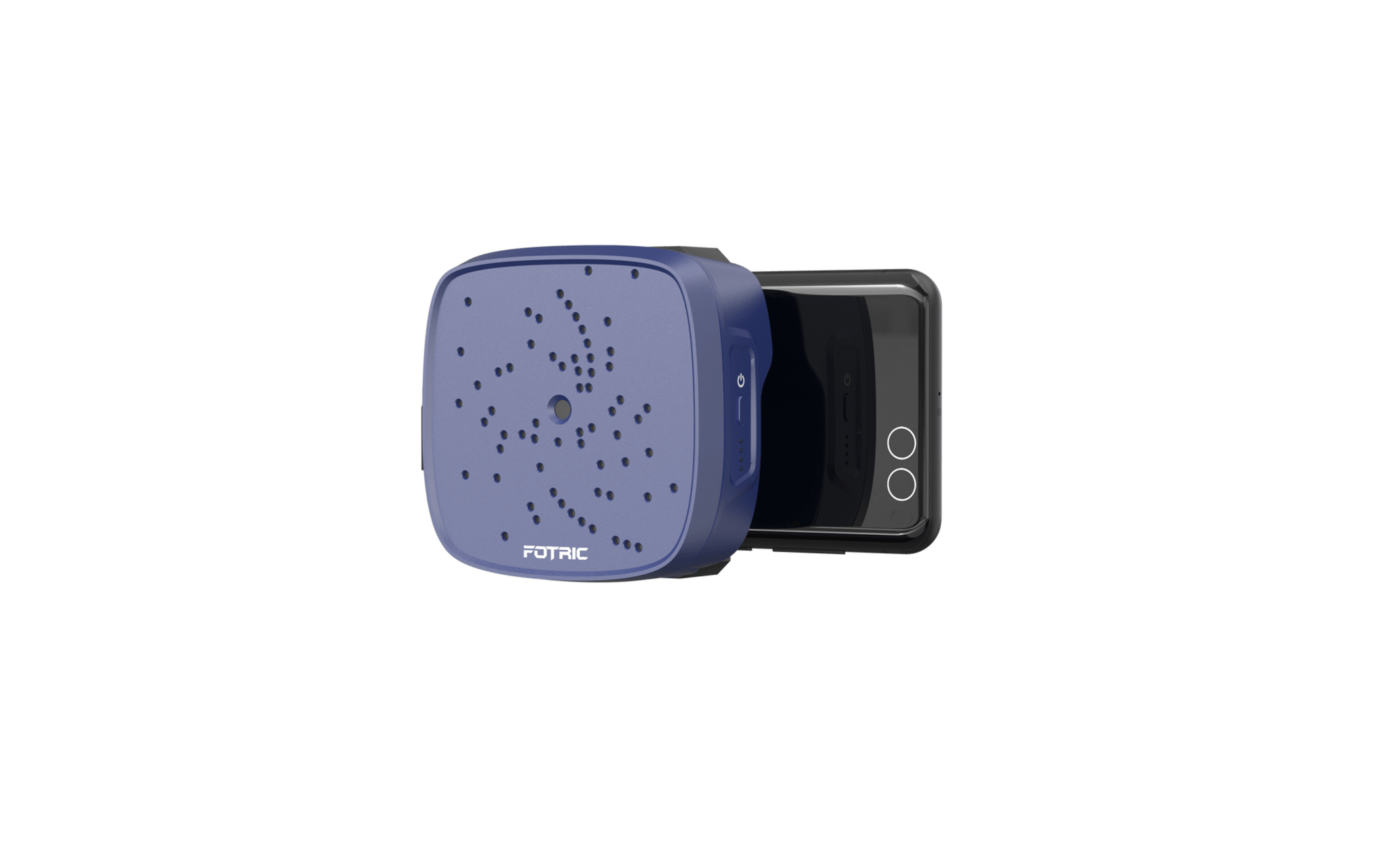

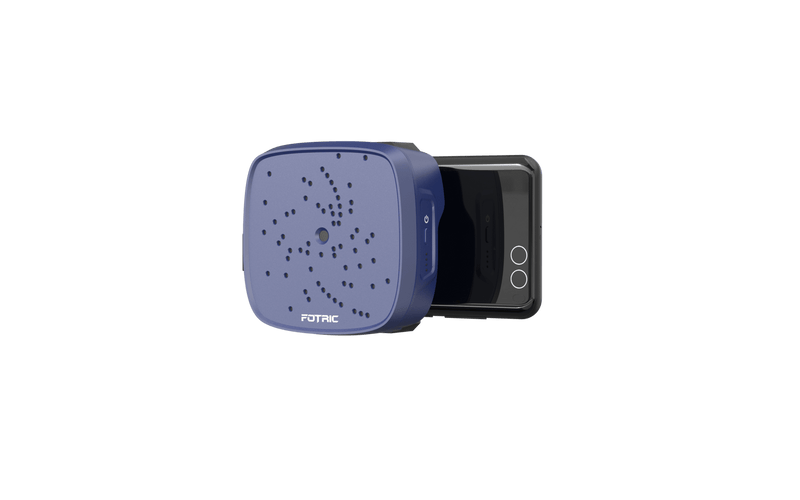

FOTRIC TD2 Geek Draagbare Akoestische Beeldvorming
FotricFOTRIC TD2 Geek akoestische beeldcamera, 64 MEMS digitale microfoons, akoestische beeldapparaat voor Android-smartphones, geluidsdetectie, 66°×52° FOV, frequentiebereik van 2~50kHz
- Normale prijs
- €699,00
- Aanbiedingsprijs
- €699,00
- Normale prijs
-
Tax included.
Free shipping. Discounts calculated at checkout.
-
Geluid in real-time zien
Zet uw smartphone om tot een krachtige akoestische beeldvormer met de FOTRIC TD2 Geek. Met een array van 64 microfoons vangt het geluidbronnen van 2 kHz tot 50 kHz op en visualiseert ze—waardat u letterlijk kunt zien waar geluiden vandaan komen met een kleurrijke geluidsoverlay op uw scherm. -
Van natuur tot geluidsbeheersing
Ideaal voor vogelkijken, insectenvolgen, huisdierenredding en observatie van wilde dieren. Ook uitstekend geschikt voor industrieel gebruik: vind persluchtlekkages, electrisch zoemen, mechanische geluiden en muurgeluiden met uiterste precisie. -
Ontdek de wetenschap van geluid
Visualiseer uw stem, instrumenttinten of kamerakoestiek. Ideaal voor musici, docenten en geluidsingenieurs om toonhoogte, resonantie en geluidsverdeling in de werkomgeving te analyseren. -
Eenvoudige plug & play-installatie
Sluit de TD2 Geek eenvoudig aan op uw smartphone via USB-C, download de FOTRIC Genie app en begin direct met beeldvormen. Geen ingewikkelde kalibratie—neem gewoon op en analyseer onderweg. -
Draagbaar en meer toepassingen
Met een gewicht van slechts 240 g, IP54-bescherming en een 4-uurs batterij. Het dekt afstanden van 0,3 tot 100 m met een kijkveld van 66° × 52° (FOV). De TD2 Geek is uw favoriete hulpmiddel voor veldonderzoek, educatieve projecten en doe-het-zelf akoestische verkenning.
FOTRIC develops professional thermal and acoustic imaging solutions for industrial and inspection applications.
FOTRIC thermal cameras are suitable for engineers, electricians, maintenance teams, researchers, and industrial inspection professionals.
Yes, FOTRIC cameras support PC software and mobile applications for analysis, reporting, and real-time monitoring.
FOTRIC provides professional technical support, firmware updates, and continuous software improvements.
Why do humans have two ears?
Ears are located on both sides of the head, we can hence determine the direction of a sound source by calculating the time and intensity differences between the sound from the left and right ear.
Augment Your Hearing
TD2 Geek is like a hearing system with 64 "ears", which "listens" to sounds from different angles simultaneously through array microphones and reconstructs the direction of the sound source in three dimensions to see where it comes from.
Everything You Need, Right Out of the Box
Plug in. Open the app. You're ready.

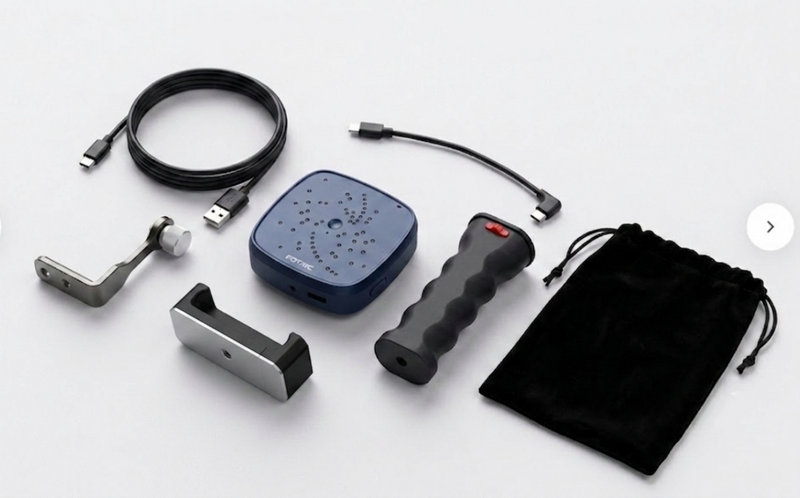

What's Included
- FOTRIC TD2 Geek
- USB Type-C to USB Cable
- Type-C to Type-C Cable
- Quick Start Guide
- Phone Stand (Gift)
- Carrying Bag

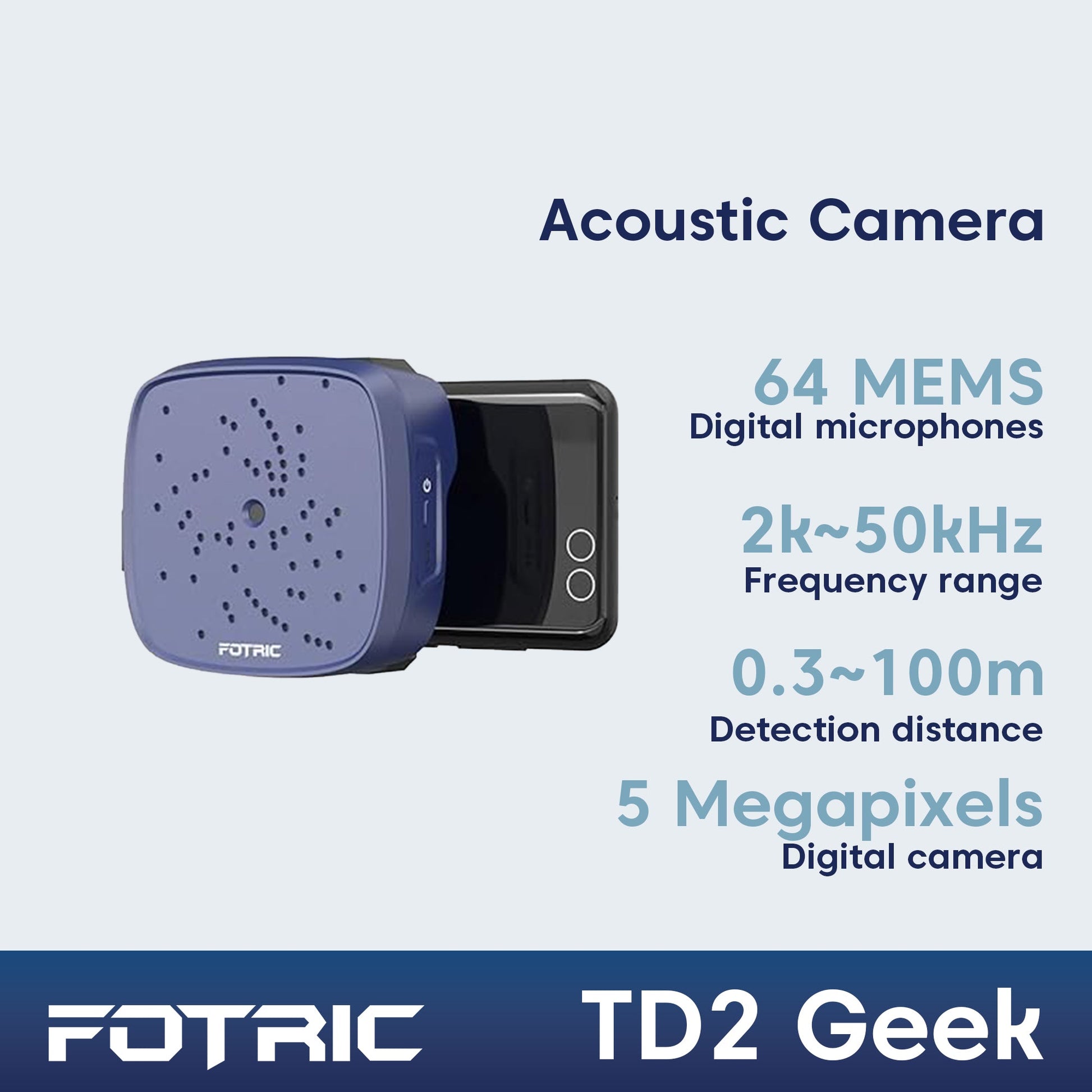

Technical Specifications
Microphone Channels
64 MEMS Digital Microphones
Frequency Range
2 kHz – 50 kHz
Field of View (FOV)
66° × 52°
Detection Distance
0.3 – 100 m
Digital Camera
5 MP
Battery Life
4 hours (self-powered)
Enclosure Rating
IP54
Weight
240 g
Connection
USB Type-C
Compatibility
Android via FOTRIC Genie App
FAQ
FAQ
Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.
View All Support ResourcesWhat smartphones are compatible with the TD2 Geek? Does it work with iOS/iPhones?
The TD2 Geek is designed exclusively for Android devices and does not support Apple iPhones. Your smartphone must run Android 12 or above and have the OTG (On-The-Go) function enabled in the settings.
How does the TD2 Geek work?
It uses an array of 64 MEMS microphones to capture sound from multiple directions simultaneously. It calculates the direction and intensity of each sound source and creates a colorful "sound map" overlaid on a real-time camera image, allowing you to visually locate sounds—including ultrasonic frequencies beyond human hearing.
What kind of sounds or faults can the TD2 Geek detect?
The device is highly versatile and can detect:
- Industrial: Compressed air leaks, mechanical friction/abnormal noise, and high-frequency humming from electrical equipment.
- Everyday & Geek: Noises behind walls, nature sounds (bird/insect tracking), and even music visualization.
What is the detection distance and frequency range?
The effective detection range is 0.3m to 100m. It covers a frequency range of 2kHz to 50kHz, which is optimized for both industrial leak/fault detection and everyday consumer applications. The frequency span can be manually adjusted in the app.
How long does the battery last? Will it drain my phone's battery?
The TD2 Geek features its own built-in battery that provides approximately 4 hours of continuous operating time. Because it has an independent power source, it will not drain your phone's battery during use.
What kind of acoustic imaging modes are available?
The FOTRIC Genie app provides three professional visualization modes:
- Single-source: Highlights only the strongest sound pressure level area on the screen.
- Multi-source: Displays multiple strong sound sources simultaneously.
- Hologram: Displays the overall sound pressure distribution, giving you a complete picture of the surrounding acoustic environment.
